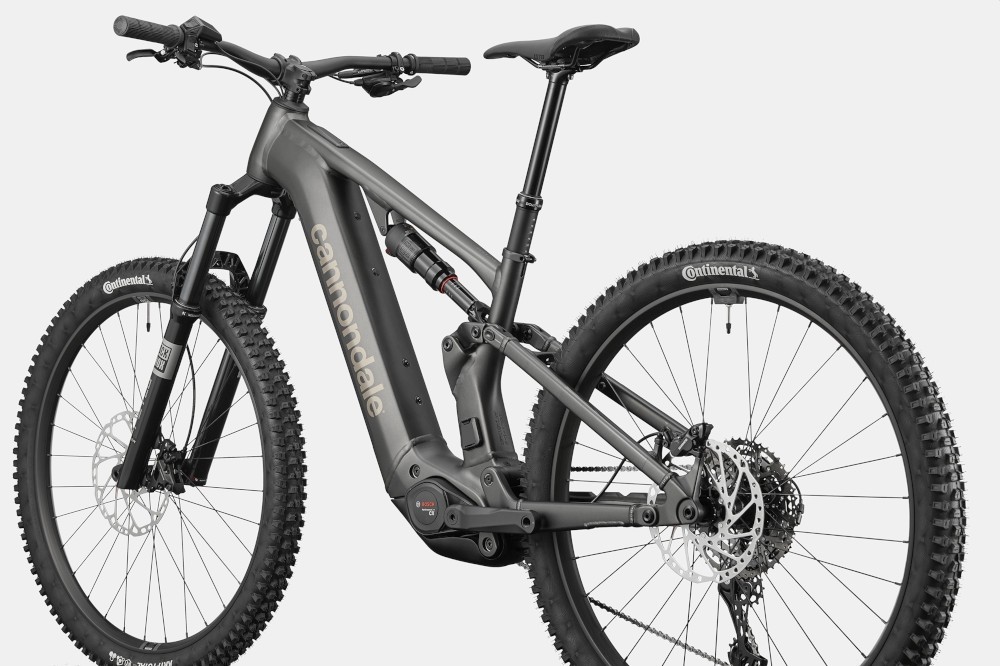

Cannondale Moterra 3 2025 - Electric Mountain Bike
- A premium SmartForm C1 Alloy frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
- Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- RockShox’s workhorse all-mountain suspension – 160mm Psylo Silver RC fork and Deluxe Select air shock
- Reliable WTB ST i30 rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
- Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
- Shimano MT520 4-piston hydraulic disc brakes with 203mm rotors deliver strong, consistent braking power
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Moterra, SmartForm C1 Alloy |
| Fork | RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset |
| Rear Shock | RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm |
| Headset | Acros ICR, 1.5" to 1.8", sealed bearings |
| Stem | Cannondale 1, 6061 Alloy, 35.0, 40mm, 0° |
| Bars | Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
| Front Brake | Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors |
| Rear Brake | Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors |
| Brake Lever | Shimano MT501 hydraulic disc |
| Rear Mech | Shimano CUES U6000, LinkGlide |
| Shifters | Shimano CUES U6000, 11-speed, LinkGlide |
| Speed | 11 |
| Rims | WTB ST i30 TCS, 30mm inner width, 32h, tubeless ready |
| Front Hub | Shimano TC500, 15x110mm thru-axle |
| Rear Hub | Shimano TC500, 12x148mm thru-axle, centerlock |
| Spokes | DT Swiss Champion 2.0 |
| Front Tyre | Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable |
| Rear Tyre | Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
| Seat Post | Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Saddle | WTB Silverado Medium |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Cassette | Shimano CUES LG400, LinkGlide, 11-50, 11-speed |
| Pedals | Not Included |
| Battery Size (WH) | Bosch PowerTube, 800Wh |

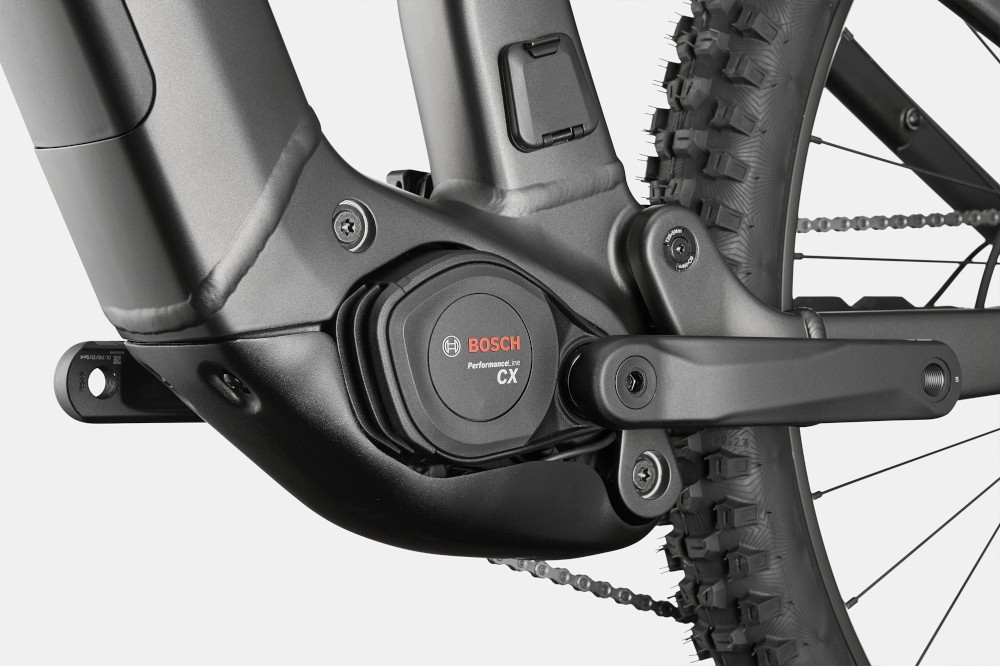

| Motor | Bosch Performance Line CX |
| User Interface | Bosch Purion 200 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
