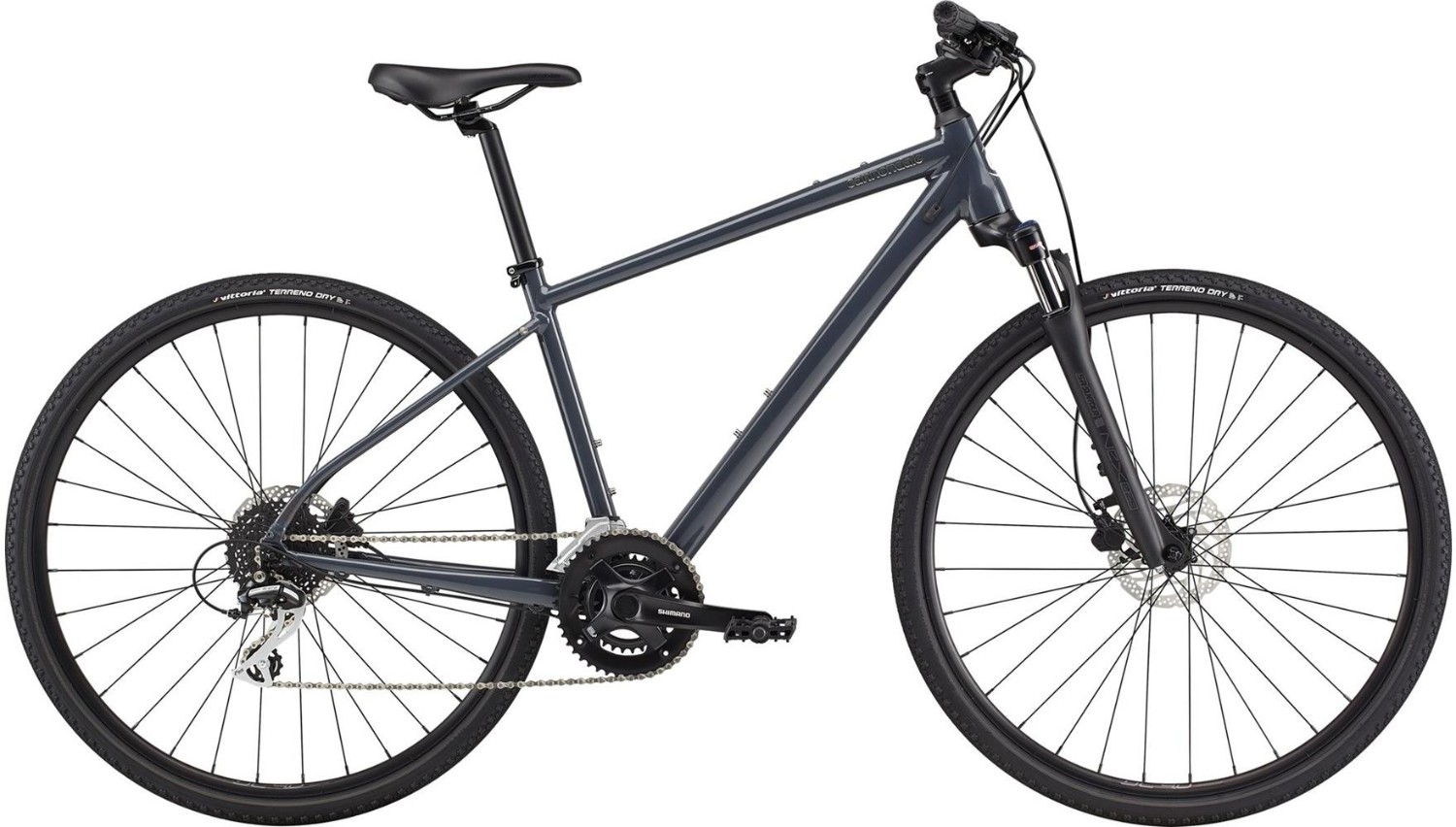

Cannondale Quick CX 3 2023 - Hybrid Sports Bike
The Cannondale Quick CX 3 is designed for everyday versatility on your journey. The smartform C3 alloy frame provides a sturdy foundation, featuring hidden cable routing and rack/fender mounts for practicality. With a responsive Suntour Nex-E25 fork, Shimano Tourney/Acera drivetrain, and Tektro hydraulic disc brakes, this bike delivers a smooth and controlled ride. The 16-speed Shimano ST-EF505 shifters ensure seamless gear transitions, while the Cannondale Fitness Ergo Double Density saddle adds comfort to every outing.
Key Features:
- Frame: All-new Smartform C3 alloy, tapered head tube, hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity.
- Fork: Suntour Nex-E25, 63mm, coil, lockout, custom crown.
- Drivetrain: Shimano Tourney 46/30 chainset, Shimano Acera rear mech, Sunrace 11-34 8-speed cassette.
- Brakes: Tektro HD-T275-HDR280 hydro disc, 160mm rotors.
- Wheels: DC 4.0 double wall w/eyelet rims, Shimano HB-TX505 front hub, Shimano FH-TX505 rear hub.
- Other Feature: 16-speed Shimano ST-EF505 shifters for precise control.
- Finance Option: Available with 0% APR finance.
Embark on your cycling adventures with confidence, courtesy of the Cannondale Quick CX 3. The Cannondale riser handlebars provide a comfortable riding position, while the reflective Vittoria Terreno Dry tyres enhance visibility and safety. The KMC X8 8-speed chain and Sunrace cassette offer durability and smooth performance, making this bike an ideal companion for varied terrains.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | All-New, SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
| Fork | Suntour NEX-E25, 63mm, coil, lockout, custom crown |
| Headset | Semi Integrated, Tapered |
| Stem | Cannondale 3 with Intellimount, alloy, 31.8mm clamp |
| Bars | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 700mm |
| Front Brake | Tektro HD-T275-HDR280, 160mm |
| Rear Brake | Tektro HD-T275-HDR280, 160mm |
| Brake Lever | Tektro HD-T275-HDR280 hydro disc |
| Front Mech | Shimano Tourney, 31.8 Clamp |
| Rear Mech | Shimano Acera, SGS |
| Shifters | Shimano ST-EF505, 8-speed |
| Speed | 16 |
| Rims | DC 4.0, double wall w/eyelet, 32h |
| Front Hub | Shimano HB-TX505 |
| Rear Hub | Shimano FH-TX505 |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Vittoria Terreno Dry, 700 x 40, reflective strip |
| Rear Tyre | Vittoria Terreno Dry, 700 x 40, reflective strip |
| Seat Post | 6062 Alloy, 27.2 x 350mm |
| Saddle | Cannondale Fitness Ergo Double Density |
| Chainset | Shimano Tourney, 46/30 |
| Bottom Bracket | Cartridge, square taper |
| Chain | KMC X8, 8-speed |
| Cassette | Sunrace, 11-34, 8-speed |
| Pedals | Cannondale Platform |
Cannondale Quick CX Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
157 – 170 |
5’2” – 5’7” |
|
M |
165 – 177 |
5’5” – 5’10” |
|
L |
175 – 187 |
5’9” – 6’2” |
|
XL |
182 – 195 |
6’0” – 6’5” |
Cannondale Quick CX Geometry Chart
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack | 573 | 590 | 607 | 623 | 640 |
| Reach | 391 | 402 | 412 | 422 | 432 |
| Head Tube Length | 90 | 108 | 126 | 143 | 162 |
| Head Tube Angle | 69.0° | 69.0° | 69.0° | 69.0° | 69.0° |
| Bottom Bracket Height | 293 | 293 | 293 | 293 | 293 |
| Bottom Bracket Drop | 64 | 64 | 64 | 64 | 64 |
| Trail | 78 | 78 | 78 | 78 | 78 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 |
| Front Centre | 648 | 666 | 682 | 698 | 715 |
| Chainstay Length | 450 | 450 | 450 | 450 | 450 |
| Wheelbase | 1091 | 1108 | 1124 | 1141 | 1158 |
| Top Tube Length (horizontal) | 566 | 582 | 597 | 612 | 628 |
| Standover Height | 677 | 725 | 764 | 802 | 840 |
| Seat Tube Length | 350 | 400 | 450 | 500 | 550 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
