Haibike Allmtn CF 11 Pinion MGU 2025 - Electric Mountain Bike

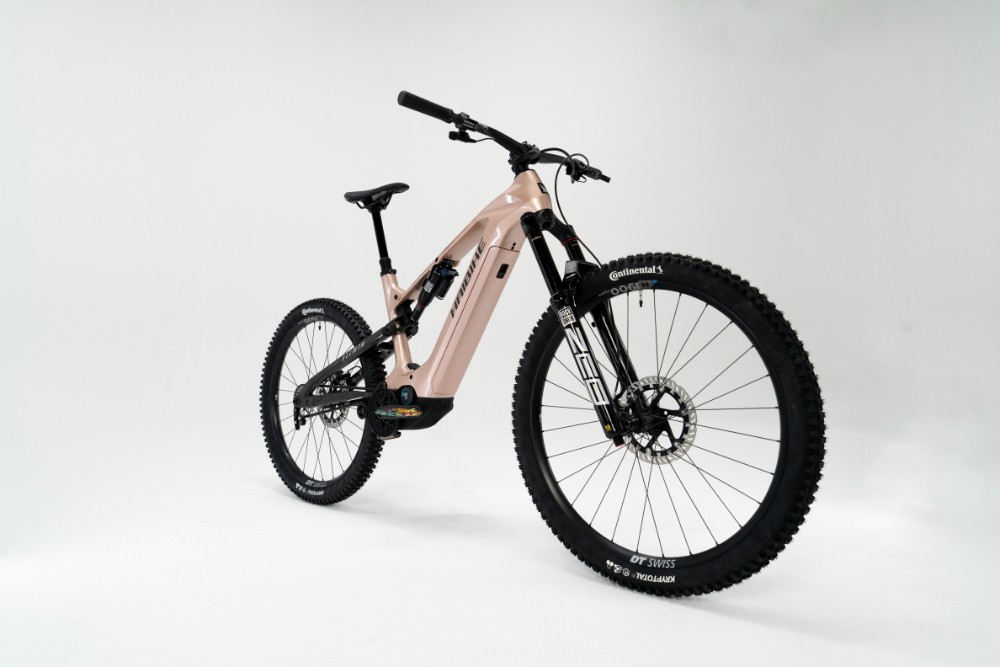

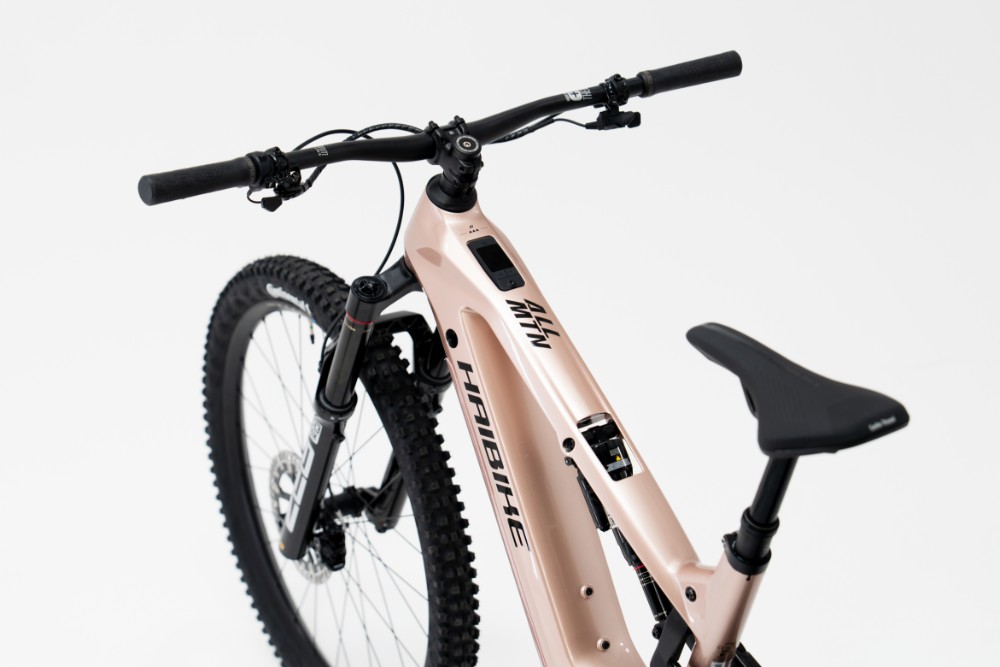

The Haibike AllMtn CF 11 TRN/IQ is a next-gen trail e-bike that brings together advanced technology, minimal maintenance and playful ride quality. At its core is a European-built carbon frame that’s lightweight, responsive and engineered for all-mountain agility. Short chainstays and a centralised centre of gravity make this bike feel lively and confident across technical terrain.
Key Features:
- Lightweight carbon frame with playful geometry and central centre of gravity
- RockShox ZEB Ultimate RC2 fork with 160mm of travel
- RockShox Super Deluxe Ultimate RC2T rear shock, 160mm travel
- Pinion TE1 shifter with integrated 12-speed gearbox
- Magura MT5 4-piston hydraulic disc brakes front and rear
- DT Swiss H1900 wheels with mullet setup: 29" front, 27.5" rear
- Gates Carbon Drive CDX belt system for low-maintenance performance
- Available with 0% APR finance
Drive Information:
- Motor: Pinion E1.12 MGU with 85Nm torque and integrated 12-speed gearbox
- Battery: InTube 800Wh removable battery
- User Interface: FIT Master Mode with intuitive display and control
Haibike AllMTN CF Pinion MGU Review
What sets the CF 11 apart is the Pinion E1.12 MGU (Motor Gearbox Unit)—a seamlessly integrated motor and 12-speed gearbox that eliminates the need for a derailleur and cassette. This not only lowers unsprung mass for improved suspension performance, but also means fewer moving parts, less maintenance and no gear skipping. The Gates Carbon Drive CDX belt system is clean, quiet and requires minimal upkeep, giving you more ride time and less workshop time.
Shifting is handled electronically via Smart.Shift technology, which means instant, precise gear changes—even under load or on steep inclines. The system is sealed from the elements, ensuring long-term reliability in mud, rain or dust.
The suspension package is trail-proven, with a 160mm RockShox ZEB Ultimate Charger 3.1 RC2 fork and Super Deluxe Ultimate rear shock, delivering excellent small-bump sensitivity and big-hit control. Magura MT5 brakes with 4-piston calipers offer strong, fade-free stopping power, while the DT Swiss H1900 wheelset (mullet setup: 29” front / 27.5” rear) provides a confident balance of speed and agility.
With an 800Wh battery, the AllMtn CF 11 offers long-range capability for big days on the hill, while the FIT Master Mode display keeps everything dialled in and easy to control from the cockpit.
Whether you're climbing technical singletrack, railing alpine descents or exploring new backcountry routes, the Haibike AllMtn CF 11 is a smart, capable and seriously fun way to ride further and faster off-road.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Fork | RockShox ZEB Ultimate Charger 3.1 RC2 160 mm |
| Rear Shock | RockShox Super Deluxe Ultimate RC2T |
| Stem | Haibike Components TheStem +++ |
| Bars | Haibike Components TheBar +++ 780mm |
| Front Brake | Magura MT5 |
| Rear Brake | Magura MT5 |
| Rear Mech | N/A |
| Shifters | Pinion TE1 trigger |
| Speed | 12 |
| Rims | DT Swiss H1900 |
| Front Hub | DT Swiss 370 |
| Rear Hub | DT Swiss 370 |
| Spokes | DT Hybrid 1SP |
| Front Tyre | Continental Kryptotal- F, 60-622 |
| Rear Tyre | Continental Xynotal Trail Endurance, 65-584 |
| Seat Post | Dropper-post remote, aluminium |
| Saddle | Selle Royal Vivo |
| Chainset | Pinion Forge |
| Chain | Gates Carbon Drive CDX |
| Cassette | Gates Alloy 39 |
| Pedals | Freeride Pedal Aluminium |
| Battery Size (WH) | InTube 800Wh |
| Motor | Pinion E1.12 MGU Motor & Gearbox |
| User Interface | FIT Master Mode |
Haibike AllMtn 2025 Size Chart
|
Size |
Height (cm) |
Height (Inches) |
|
S / 40cm |
160 – 170 |
4’11” – 5’3” |
|
M / 45cm |
170 – 175 |
5’3” – 5’9” |
|
L / 50cm |
175 – 184 |
5’9” – 6’0” |
|
XL / 55cm |
180 - 193 |
5’11” – 6’4” |
What size frame do I need if I am between sizes? - read here
Haibike 2025 Geometry Chart
| Size | S 41 | M 44 | L 47 | XL 50 |
|---|---|---|---|---|
| Stack | 645 | 654 | 670 | 685 |
| Reach | 420 | 437 | 455 | 472 |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Bottom Bracket Drop | 30 | 30 | 30 | 30 |
| Fork Length | 578 | 578 | 578 | 578 |
| Fork Rake/Offset | 51 | 51 | 51 | 51 |
| Chainstay Length | 440 | 440 | 440 | 440 |
| Wheelbase | 1220 | 1252 | 1275 | 1293 |
| Top Tube Length (horizontal) | 570 | 600 | 627 | 650 |
| Seat Tube Length | 410 | 440 | 470 | 500 |
| Seat Tube Angle | 74.5° | 74.5° | 74° | 76.9° |
| Wheel Size | 2927.5 | 2927.5 | 2927.5 | 2927.5 |
| Body Height (cm) | 159-169 | 169-179 | 177-187 | 185-197 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
