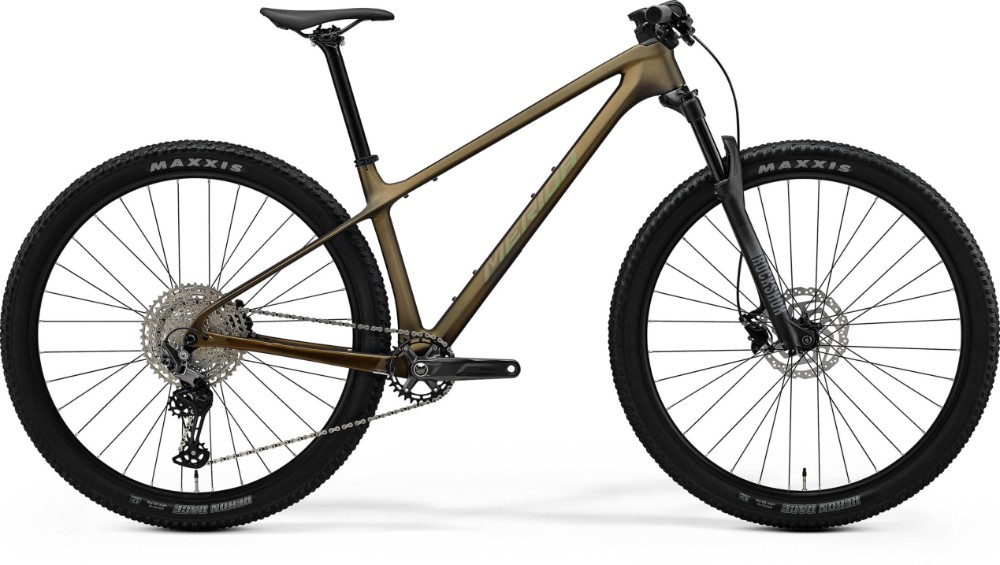

Merida Big Nine 3000 Mountain Bike 2026 - Hardtail MTB
The Big Nine 3000 is a lightweight carbon hardtail designed to cover ground quickly and efficiently. With balanced XC geometry, quality suspension and a reliable 12-speed drivetrain, it’s a bike that rewards smooth pedalling, confident handling and long rides off-road.
Key Features:
- Frame: CF3 carbon frame with progressive XC geometry and Boost spacing
- Fork: RockShox Judy Gold RL air fork with 100mm travel and remote lockout
- Drivetrain: Shimano Deore M6100 12-speed drivetrain with wide 10–51T range
- Brakes: Shimano MT200 hydraulic disc brakes with 180mm rotors
- Wheels: 29” wheels with Maxxis Rekon Race 2.4” tyres for speed and grip
- Standout: Agilometer sizing for a ride feel matched to your height and style
- Finance: Available with 0% APR finance
Cross-country racing runs deep in Merida’s history, and the Big Nine 3000 carries that focus into a modern, accessible carbon hardtail. The CF3 carbon frame keeps weight low while maintaining strength, with Boost axle spacing adding stiffness for precise tracking when you push on the pedals or lean into corners.
Merida’s Agilometer sizing system helps match frame size to both rider height and riding style, so whether you want sharp responses or more stability, the geometry works with you. The result is a bike that feels quick on climbs, composed on descents and comfortable over longer distances.
Up front, the RockShox Judy Gold RL air fork offers 100mm of controlled travel to take the edge off roots, rocks and trail chatter. The remote lockout lets you firm things up instantly for smooth climbs or sprints, helping you stay efficient when the trail allows.
Shimano’s Deore 12-speed drivetrain delivers dependable shifting and a wide gear range, making steep climbs manageable without sacrificing speed on flatter sections. Hydraulic disc brakes from Shimano provide consistent stopping power, giving confidence when trails get faster or more technical.
Rolling on 29” wheels with high-volume Maxxis Rekon Race 2.4” tyres, the Big Nine 3000 balances low rolling resistance with predictable grip, so you can carry speed while staying in control. It’s a well-rounded XC hardtail for riders who want to ride further, faster and with confidence off-road.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF3 III - carbon; Boost axle standard, BSA BB standard, Max. tyre size 29" x 2.4" |
| Fork | RockShox Judy Gold RL; Air; 100 mm travel; Tapered; Remote lockout; 29x2.4" max. tyre size; 51 mm fork offset |
| Headset | Acros ICR Merida integrated neck; Upper and lower IPS sealing |
| Stem | Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: (S-M) - 60mm, (L-XL) - 70mm, XXL - 80mm |
| Bars | Merida Expert CC; material: aluminium; 760mm wide; flat |
| Front Brake | Shimano MT200; 2 piston with Shimano RT10; 180mm |
| Rear Brake | Shimano MT200; 2 piston with Shimano RT10; 180mm |
| Rear Mech | Shimano Deore M6100; SGS |
| Shifters | Rear: Shimano Deore M6100 |
| Speed | 12 |
| Rims | Merida Comp CC II; 25mm inner rim width; material: aluminium; tubeless ready (Stans 30mm tubeless tape installed) |
| Front Hub | Shimano TC500-B; 110x15mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500-MS-B; 148x12mm; 32 Spoke; Centerlock |
| Spokes | Black stainless |
| Front Tyre | Maxxis Rekon Race; 29x2.4"; wired |
| Rear Tyre | Maxxis Rekon Race; 29x2.4"; wired |
| Seat Post | Merida Comp CC; material: aluminium; 30.9mm diameter; in-line |
| Saddle | Merida Comp SL; V-mount |
| Chainset | Shimano Deore MT512; 32 tooth chainset; Crank length: (S-M) - 170mm, (L-XXL) - 175mm |
| Bottom Bracket | Shimano BB-MT-501; 24mm |
| Chain | KMC X12 |
| Cassette | Shimano Deore M6100; 10-51 teeth; 12 speed |
| Pedals | Not Included |
Merida Big Nine 2026 Size Chart
|
Frame Size |
Height cm |
Height Feet / Inches |
|
XS |
< 163 cm |
<5’4” |
|
S |
157 - 173 cm |
5’2” – 5’8” |
|
M |
167 - 183 cm |
5’6” – 6’0” |
|
L |
177 - 190 cm |
5’10” – 6’3” |
|
XL |
187 - 196 cm |
6’2” – 6’5” |
|
XXL |
> 192 cm |
>6’4” |
What size frame do I need if I am between sizes? - read here
Merida Big Nine 2026 Geometry Chart
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Stack | 606 | 606 | 615 | 624 | 634 |
| Reach | 432 | 452 | 472 | 492 | 512 |
| Head Tube Length | 95 | 95 | 105 | 115 | 125 |
| Head Tube Angle | 68 | 68 | 68 | 68 | 68 |
| Bottom Bracket Drop | 65 | 65 | 65 | 65 | 65 |
| Fork Length | 506 | 506 | 506 | 506 | 506 |
| Chainstay Length | 430 | 433 | 436 | 439 | 442 |
| Wheelbase | 1123 | 1146 | 1173 | 1199 | 1226 |
| Top Tube Length (horizontal) | 591 | 611 | 633 | 655 | 678 |
| Standover Height | 704 | 704 | 710 | 731 | 752 |
| Seat Tube Length | 380 | 410 | 440 | 470 | 500 |
| Seat Tube Angle | 75.3 | 75.3 | 75.3 | 75.3 | 75.3 |
| Tyre Size | 29" | 29" | 29" | 29" | 29" |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
