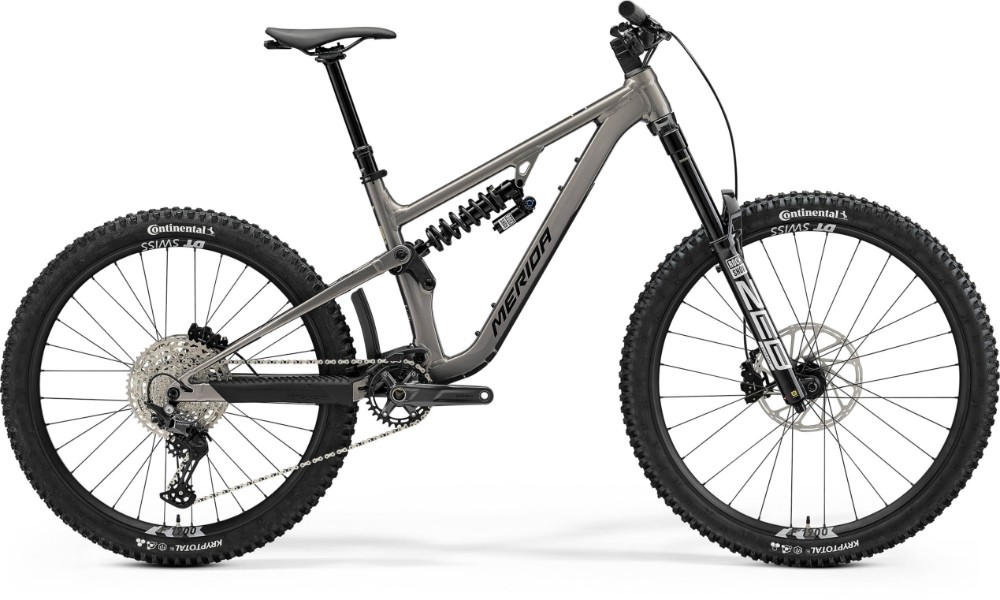

Merida One-Sixty FR 800 Mountain Bike 2026 - Enduro Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5" |
| Fork | RockShox Zeb Ultimate; Air; 180 mm travel; 44mm offset; 29x2.6" max. tyre size |
| Rear Shock | RockShox Vivid coil; lockout; spring rate: XShort - 300 lbs, Short - 350 lbs, Mid - 400, Long - 450 lbs, Xlong - 500 lbs |
| Headset | Acros ICR Merida external neck; Upper and lower IPS sealing |
| Stem | Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
| Bars | Merida Expert TR II; material: aluminium; 780mm wide; 30mm rise |
| Front Brake | SRAM Maven; 4 piston with SRAM CenterLine; 220mm |
| Rear Brake | SRAM Maven; 4 piston with SRAM CenterLine; 200mm |
| Rear Mech | Shimano Deore M6100; SGS |
| Shifters | Front: SRAM dropper lever MMX, Rear: Shimano Deore M6100 |
| Speed | 12 |
| Rims | DT Swiss F 1900; 110x15mm; 148x12mm; 30mm inner rim width; material: aluminium; Tubeless ready (tubeless tape and valves included); front 29"; rear 27.5" |
| Front Hub | Part of wheelset - DT Swiss F 1900 |
| Rear Hub | Part of wheelest - DT Swiss F 1900 |
| Spokes | Double Butted Black stainless w/black nipples |
| Front Tyre | Continental Kryptotal-F; 29x2.4"; kevlar bead; TR; Enduro casing; Soft Compund |
| Rear Tyre | Continental Kryptotal-R; 27.5x2.4"; kevlar bead; TR; Downhill Casing; Soft Compound |
| Seat Post | Merida Expert III; 34.9mm diameter; in-line; 25mm travel adjustability; XShort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm seat post travel |
| Saddle | Merida Comp SL; 25% recycled material; V-mount |
| Chainset | Shimano Deore MT512; 32 tooth chainset; Crank length: 165mm |
| Bottom Bracket | Shimano BB-MT-501; 24mm |
| Chain | KMC X12 |
| Cassette | Shimano Deore M6100; 10-51 teeth; 12 speed |
| Pedals | Not Included |
Merida One-Sixty FR Sizing
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XS | 148 - 158 | 4'10" - 5'2" |
| S | 158 - 168 | 5'2" - 5'6" |
| M | 168 - 178 | 5'6" 5'10" |
| L | 178 - 185 | 5'10" - 6'1" |
| XL | 185 - 193 | 6'1" - 6'4" |
Merida One-Sixty FR Geometry
| FRAME SIZE | XS | S | M | L | XL |
| TYRE SIZE | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| SEAT TUBE [MM] | 400 | 410 | 425 | 445 | 470 |
| TOP TUBE [MM] | 537 | 564 | 591 | 623 | 655 |
| CHAIN STAY LENGTH [MM] | 434 | 434 | 434 | 437.5 | 437.5 |
| HEAD TUBE ANGLE [°] | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
| SEAT TUBE ANGLE [°] | 78 | 78 | 78 | 78 | 78 |
| BOTTOM BRACKED DROP [MM] | 2 | 2 | 2 | 2 | 2 |
| HEAD TUBE [MM] | 95 | 95 | 95 | 105 | 120 |
| FORK LENGTH [MM] | 594 | 594 | 594 | 594 | 594 |
| REACH [MM] | 409 | 437 | 464 | 492 | 519 |
| STACK [MM] | 620 | 620 | 620 | 629 | 643 |
| WHEEL BASE [MM] | 1193 | 1220 | 1248 | 1281 | 1314 |
| STAND OVER HEIGHT [MM] | 735 | 740 | 743 | 740 | 735 |
