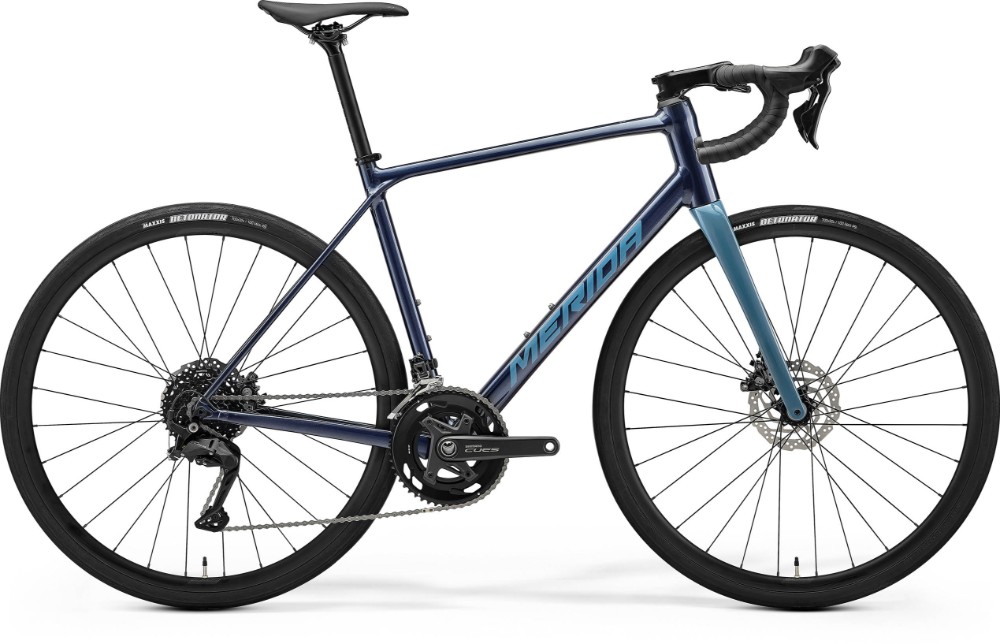

Merida Scultura Endurance 200 2026 - Road Bike

The Scultura Endurance 200 is built for relaxed, confidence-inspiring road riding. Its upright geometry, carbon fork and stable handling make it well suited to longer days in the saddle, rougher lanes and everyday riding on real-world roads.
Key Features:
- Lite aluminium frame with endurance geometry and internal cable routing
- Full carbon Scultura Endurance CF3 Disc fork
- Shimano CUES 2x9-speed drivetrain
- Shimano CUES mechanical disc brakes
- Merida Comp SL II wheels with Maxxis Detonator tyres
- Clearance for tyres up to 35c for added comfort
- Available with 0% APR finance
The Merida Scultura Endurance 200 is designed to make road riding more comfortable and approachable, especially if your rides stretch beyond an hour or take in less-than-perfect surfaces. Its Lite aluminium frame uses endurance-focused geometry, with a longer head tube and slightly slacker angles that put you in a more upright, relaxed position. This helps reduce strain on your back and shoulders while improving control on longer rides.
Stability is a key part of the Scultura Endurance’s feel. A longer wheelbase and through-axle design add confidence when descending or riding on uneven tarmac. Internal cable routing through the headset keeps the cockpit clean and tidy, while details like the hidden seat clamp and removable seat stay bridge show careful attention to everyday usability.
Up front, the full carbon CF3 Disc fork helps smooth out road vibration and sharpens steering precision. It also allows generous tyre clearance, with room for tyres up to 35c, or 32c with mudguards fitted. Running wider tyres at lower pressures adds comfort and grip, which is especially useful on rough lanes, winter roads or longer commutes.
The Shimano CUES 2x9-speed drivetrain is simple, durable and easy to live with. A 50/34T chainset paired with an 11–36T cassette gives a wide range of gears, making steady climbing more manageable while still offering comfortable cadence on flatter roads. Shifting is straightforward and reliable, which suits riders who want fuss-free performance.
Braking comes from Shimano CUES mechanical disc brakes, providing consistent control in dry or wet conditions. This is reassuring when riding year-round or dealing with unpredictable road surfaces.
The bike rolls on Merida Comp SL II wheels, which are tubeless ready, and come fitted with 32c Maxxis Detonator tyres. These strike a good balance between efficiency and comfort, helping take the sting out of longer rides without feeling sluggish.
Overall, the Merida Scultura Endurance 200 is a practical, comfortable road bike that suits riders looking to build miles, commute or enjoy longer rides at a steady pace. It’s a solid entry point into endurance road riding, designed around comfort, stability and real-world usability.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite Aluminium, endurance geometry. Internal cable routing, 142 x12mm axle standard, BB86, flat mount rear brakes, 1 1/2" headtube. Max tyre - 35c (32c with mudguards) |
| Fork | Scultura Endurance CF3 Disc; material: carbon; 700x35C max. tyre size |
| Headset | Acros ICR Merida External neck w/diecast splitring |
| Stem | Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: (XXXXS-XXXS) - 80mm, (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm |
| Bars | Merida Expert SLII; material: aluminium; (XXXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Front Brake | Shimano CUES; Mechanical Disc with Shimano RT10; 160mm |
| Rear Brake | Shimano CUES; Mechanical Disc with Shimano RT10; 160mm |
| Brake Lever | Shimano CUES |
| Front Mech | Shimano CUES |
| Rear Mech | Shimano CUES; SGS 9S |
| Shifters | Front: Shimano CUES Mechanical disc, Rear: Shimano CUES Mechanical disc |
| Speed | 18 |
| Rims | Merida Comp SL II; 23mm inner rim width; 24mm rim depth; material: aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Joytech D981SB; 100x12mm; 28 Spoke; Centerlock |
| Rear Hub | Joytech D872SB; 12-142mm; 28 Spoke; Centerlock |
| Spokes | Black stainless |
| Front Tyre | Maxxis Detonator; 700x32C; kevlar bead |
| Rear Tyre | Maxxis Detonator; 700x32C; kevlar bead |
| Seat Post | Merida Comp CC; 27.2mm diameter; in-line; material: aluminium |
| Saddle | Merida Comp SL; 25% recycled material; V-mount |
| Chainset | Shimano CUES; 50-34 tooth chainset; Crank length: (XXXXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | Shimano SM-BB71-41B; Pressfit 86.5 |
| Chain | KMC xGlide |
| Cassette | Shimano LG300-9; 11-36 teeth; 9 speed |
| Pedals | Not Included |
![]()
Merida Scultura Endurance 2026 Size Chart
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
What size frame do I need if I am between sizes? - read here
Merida Scultura Endurance 2026 Geometry Chart
| Size | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Stack | 539 | 552 | 565 | 584 | 603 | 629 |
| Reach | 360 | 366 | 376 | 380 | 389 | 397 |
| Head Tube Length | 140 | 152 | 161 | 177 | 197 | 222 |
| Head Tube Angle | 70.5° | 71° | 72° | 73° | 73° | 73.5° |
| Bottom Bracket Drop | 66 | 66 | 66 | 66 | 66 | 66 |
| Fork Length | 380 | 380 | 380 | 380 | 380 | 380 |
| Chainstay Length | 418 | 418 | 418 | 418 | 418 | 418 |
| Wheelbase | 992 | 997 | 1001 | 1001 | 1017 | 1026 |
| Top Tube Length (horizontal) | 515 | 524 | 538 | 553 | 568 | 583 |
| Standover Height | 742 | 767 | 785 | 803 | 823 | 852 |
| Seat Tube Length | 440 | 470 | 490 | 510 | 530 | 560 |
| Seat Tube Angle | 74° | 74° | 74° | 73.5° | 73.5° | 73.5° |
| Tyre Size | 28" | 28" | 28" | 28" | 28" | 28" |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
