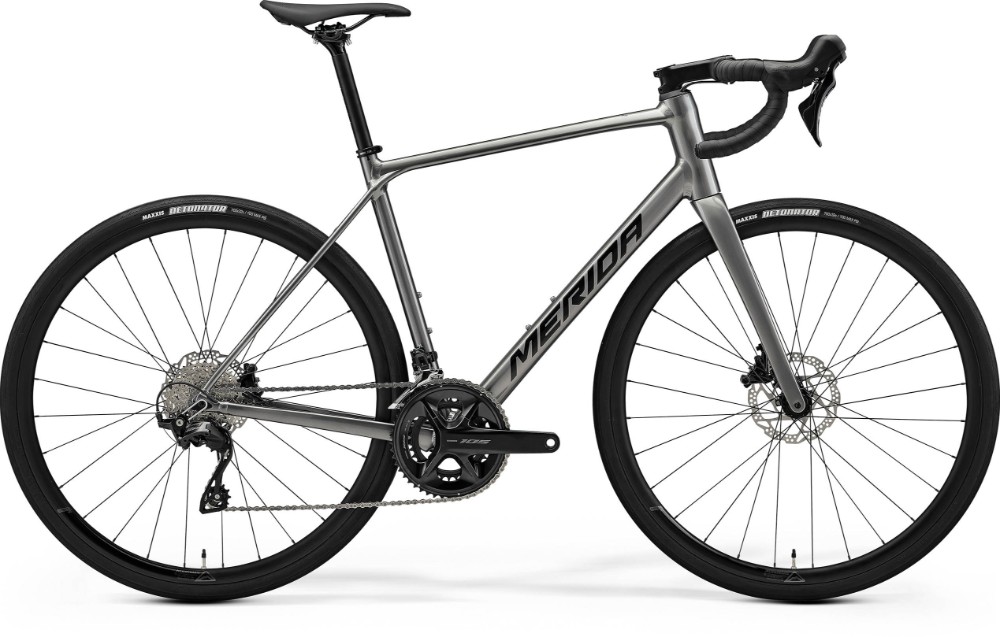

Merida Scultura Endurance 400 2026 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite Aluminium, endurance geometry. Internal cable routing, 142 x12mm axle standard, BB86, flat mount rear brakes, 1 1/2" headtube. Max tyre - 35c (32c with mudguards) |
| Fork | Scultura Endurance CF3 Disc; material: carbon; 700x35C max. tyre size |
| Headset | Acros ICR Merida External neck w/diecast splitring |
| Stem | Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: (XXXXS-XXXS) - 80mm, (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm |
| Bars | Merida Expert SLII; material: aluminium; (XXXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Front Brake | Shimano 105; Hydraulic disc with Shimano RT54; 160mm |
| Rear Brake | Shimano 105; Hydraulic disc with Shimano RT54; 160mm |
| Brake Lever | Shimano 105 |
| Front Mech | Shimano 105 |
| Rear Mech | Shimano 105; GS |
| Shifters | Front: Shimano 105 disc, Rear: Shimano 105 disc |
| Speed | 24 |
| Rims | Merida Expert SL III; 23mm inner rim width; material: aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Shimano HB-TC500; 100x12mm; 28 Spoke; Centerlock |
| Rear Hub | Shimano FH-TC500-HL; 12-142mm; 28 Spoke; Centerlock |
| Spokes | Double Butted Black stainless |
| Front Tyre | Maxxis Detonator; 700x32C; kevlar bead |
| Rear Tyre | Maxxis Detonator; 700x32C; kevlar bead |
| Seat Post | Merida Comp CC; 27.2mm diameter; in-line; material: aluminium |
| Saddle | Merida Comp SL; 25% recycled material; V-mount |
| Chainset | Shimano 105 R7100; 50-34 tooth chainset; Crank length: (XXXXS-XXXS) - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | Shimano SM-BB71-41B; Pressfit 86.5 |
| Chain | Shimano M6100-12 |
| Cassette | Shimano 105 R7101; 11-34 teeth; 12 speed |
| Pedals | Not Included |
Merida Scultura Endurance Size Chart
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
What size frame do I need if I am between sizes? - read here
