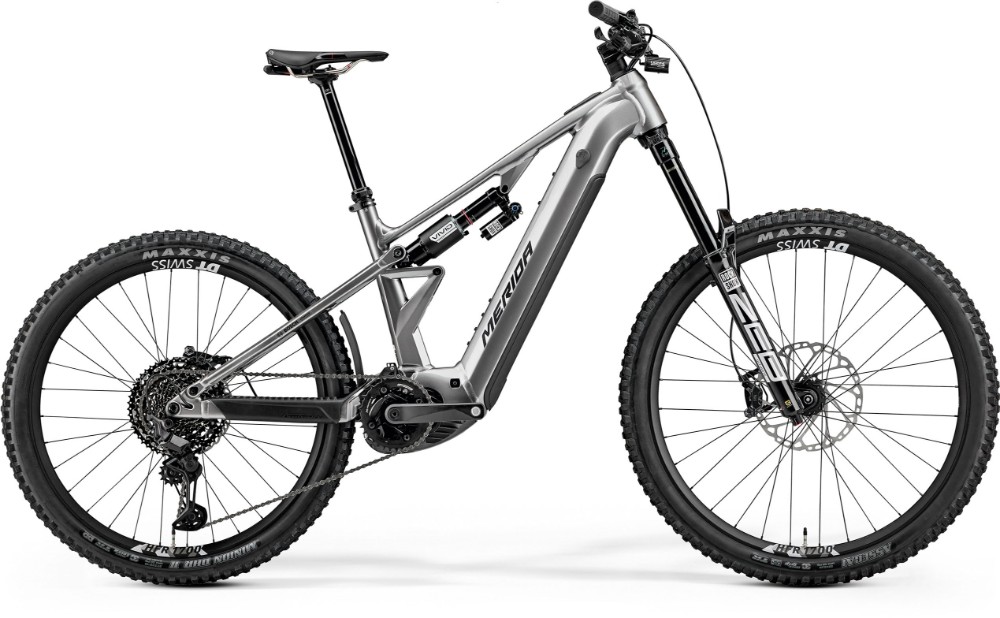

Merida eOne-Eighty 900 2026 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6” |
| Fork | Rockshox Zeb Ultimate eMTB; Air; 180mm travel; Tapered; 44mm fork offset |
| Rear Shock | Rock Shox Vivid Ultimate |
| Headset | Acros ICR Merida external neck w/ Blocklock |
| Stem | Merida Expert eTR II; material: aluminium; 35mm diameter; 0 degree rise; Supernova mount; length: 40mm |
| Bars | Merida Expert eTR; 780mm wide |
| Front Brake | Shimano XT; 4 piston with Shimano RT66; 220mm |
| Rear Brake | Shimano XT; 4 piston with Shimano RT66; 203mm |
| Rear Mech | Shimano XT LG |
| Shifters | Front: Shimano SL -MT500-IL Rear: Shimano XT |
| Speed | 11 |
| Rims | DT Swiss HF 1700; 110x15mm; 148x12mm; 30mm inner rim width; 6-Bolt; Shimano HG; material: aluminium; Tubeless ready (tubeless tape and valves included) |
| Front Hub | Part of wheelset: DT Swiss HF 1700 |
| Rear Hub | Part of wheelset: DT Swiss HF 1700 |
| Spokes | Part of wheelset: DT Swiss HF 1700 |
| Front Tyre | Maxxis Assegai; 29x2.5 "; kevlar bead; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis Minion DHR II; 27.5x2.4 "; kevlar bead; 3C DD TR MaxxTerra |
| Seat Post | Merida Team TR II; 34.9mm diameter; in-line; XShort - 30-200mm, Short-XLong - 30-230mm seat post travel |
| Saddle | Proxim Altius Triox; V-mount adapter; incl. Merida minitool |
| Chainset | FSA 1x Alloy Spider + Mega Tooth steel chain ring; 36 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 160mm |
| Chain | Shimano LG500 |
| Cassette | Shimano LG400; 11-50 teeth; 11 speed |
| Pedals | VP VP-532 |
| Battery Size (WH) | 800Wh |
| Motor | Bosch Performance Line CX |
| User Interface | Bosch Purion 400 |
Merida eOne-Eighty Size Chart
|
Size |
Height (cm) |
Height (ft & in) |
|
XS |
< 163 |
5’3" |
|
S |
157 – 173 |
5’1" - 5'6" |
|
M |
167 – 183 |
5’4" - 6'0" |
|
L |
177 - 190 |
5’8” – 6’2” |
|
XL |
> 187 |
> 6'1" |
What size frame do I need if I am between sizes? - read here
