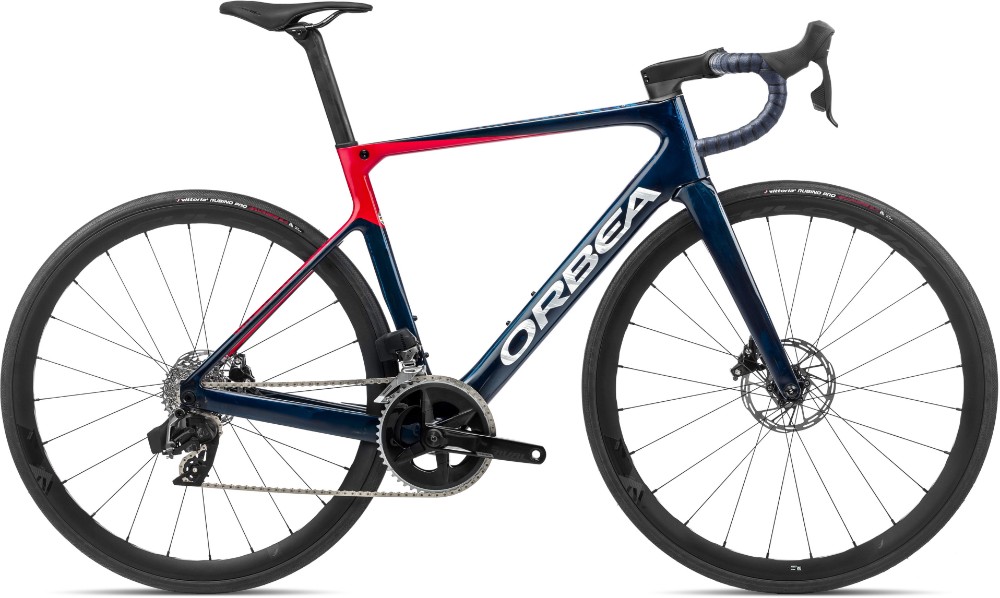

Orbea Orca M31e LTD 2023 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Orca carbon OMX Disc, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing, EC/DC compatible, OMX specific seat tube. |
| Fork | Orbea Orca OMX ICR fork 2020, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout. |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing, Stainless Steel Bearing |
| Stem | OC Road Performance RP10 Stem, -8º |
| Bars | OC RP10 Road Performance Carbon, Reach 80, Drop 125, w/Di2 hole |
| Front Brake | SRAM Rival eTap AXS |
| Rear Brake | SRAM Rival eTap AXS |
| Front Mech | SRAM Rival eTap AXS |
| Rear Mech | SRAM Rival eTap AXS |
| Shifters | SRAM Rival eTap AXS |
| Speed | 24 |
| Rims | FULCRUM Racing 400 DB |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Front Tyre | Vittoria Rubino Pro IV G2.0 700x25c |
| Rear Tyre | Vittoria Rubino Pro IV G2.0 700x25c |
| Seat Post | Orbea Orca OMX, SB0/25, w/Micro tilt adjustment |
| Saddle | Selle Italia SLR Boost SuperFlow L Manganese Rail |
| Chainset | SRAM Rival AXS Powermeter Dub 35x48t |
| Chain | SRAM Rival 12-speed |
| Cassette | SRAM XG-1250 10-30t 12-Speed |
Orbea Orca 2025 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| 47cm | 155 | 160 | 5'1" | 5'3" |
| 49cm | 160 | 166 | 5'3" | 5'5" |
| 51cm | 167 | 172 | 5'6" | 5'8" |
| 53cm | 173 | 179 | 5'8" | 5'11" |
| 55cm | 180 | 185 | 5'11" | 6'1" |
| 57cm | 186 | 191 | 6'1" | 6'3" |
| 60cm | 192 | 207 | 6'3" | 6'9" |
Orbea Orca 2025 Geometry Chart
| Size | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Stack | 506 | 515 | 533 | 552 | 572 | 590 | 616 |
| Reach | 370 | 375 | 380 | 385 | 391 | 398 | 404 |
| Head Tube Length | 110.5 | 118.2 | 134.6 | 152.9 | 173.1 | 191.2 | 218.3 |
| Head Tube Angle | 71° | 71.5° | 72.2° | 72.8° | 73° | 73.2° | 73.2° |
| Bottom Bracket Height | 268.5 | 268.5 | 268.5 | 270.5 | 270.5 | 270.5 | 270.5 |
| Bottom Bracket Drop | 72 | 72 | 72 | 70 | 70 | 70 | 70 |
| Trail | 66.0 | 62.8 | 58.4 | 59.9 | 58.7 | 57.4 | 57.4 |
| Fork Length | 365 | 365 | 365 | 365 | 365 | 365 | 365 |
| Fork Rake/Offset | 48 | 48 | 48 | 43 | 43 | 43 | 43 |
| Chainstay Length | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase | 971.8 | 975.4 | 980 | 981.2 | 991.4 | 1001.9 | 1015.6 |
| Top Tube Length (horizontal) | 510.3 | 522.7 | 535.9 | 548.5 | 560.4 | 576.1 | 590 |
| Standover Height | 736.5 | 748.5 | 767.5 | 788.5 | 808.5 | 826.5 | 852.5 |
| Seat Tube Length | 440 | 460 | 480 | 500 | 520 | 540 | 570 |
| Seat Tube Angle | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
