Trek Fuel+ EX 8 Gen 2 2026 - Electric Mountain Bike
The Trek Fuel EXe 8 Gen 2 is built for riders who want the feel of a traditional trail bike with the subtle support of an advanced e-MTB system. Its Alpha NEXT Platinum alloy frame is engineered with Trek’s latest innovations, including an angle-adjust headset and adjustable leverage rate, allowing you to fine-tune the geometry and suspension feel to suit your riding style. The integrated 580Wh battery is neatly housed in the downtube, and the removable design makes charging easy and practical.
Key Features:
- Alpha NEXT Platinum alloy frame with adjustable geometry
- Fox Rhythm 36 Float EVOL fork, 150mm travel
- Fox Performance Float X rear shock, 145mm travel
- SRAM Eagle 70 T-Type 12-speed transmission
- SRAM DB8 4-piston hydraulic disc brakes
- 29" Bontrager Line TLR wheels with Bontrager Brevard Pro XR tyres
- Angle-adjust headset for custom geometry tuning
- Available with 0% APR finance
Drive Information:
- Motor: TQ-HPR50, 60Nm torque
- Battery: TQ 580Wh
- User Interface: TQ LED display with Bluetooth & ANT+ connectivity
Power comes from the lightweight TQ-HPR50 motor, delivering 60Nm of torque with an exceptionally quiet and natural ride feel. Unlike many e-MTB systems, the TQ drive blends seamlessly into your pedalling, offering assistance when you need it without overwhelming the experience. The compact LED display, mounted in the top tube, provides key ride information and connectivity via Bluetooth and ANT+, keeping the cockpit clean and uncluttered.

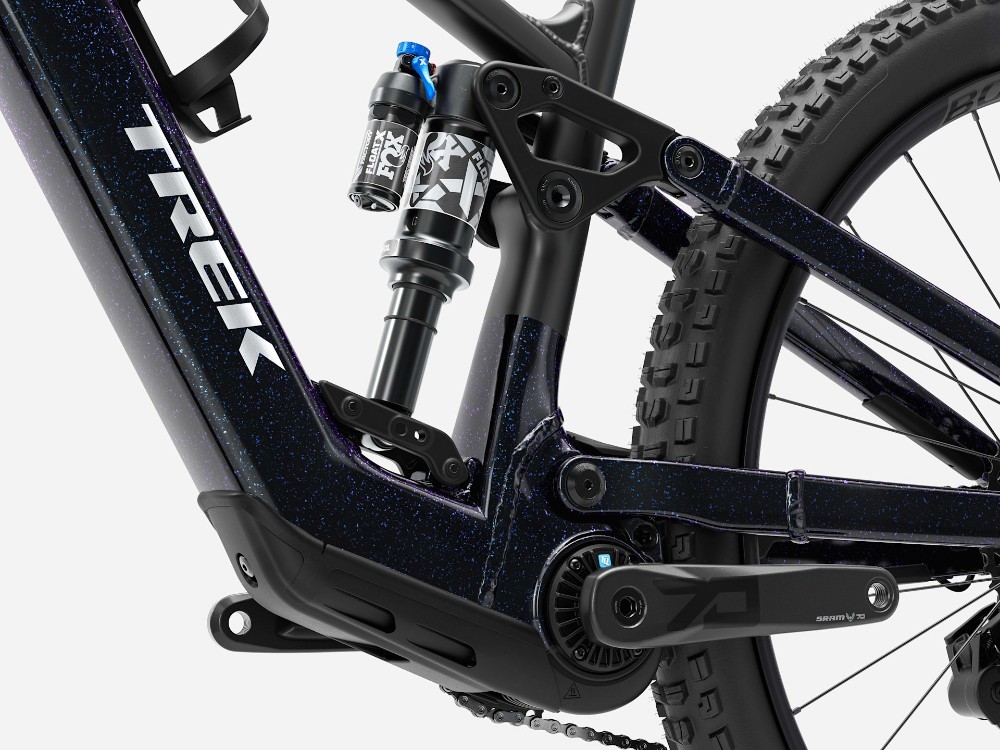

Suspension is handled by Fox’s proven Performance series, with a 150mm travel Fox Rhythm 36 Float fork paired with a 145mm Float X rear shock. This setup balances climbing efficiency with trail-smoothing plushness, giving you confidence on both technical ascents and fast, rough descents. Trek’s ABP suspension design ensures active braking performance, while the Boost148 rear spacing and UDH hanger keep the frame durable and future-proof.
The SRAM Eagle 70 T-Type drivetrain brings the precision and strength of SRAM’s latest Transmission system, with smooth 12-speed shifting even under load. Braking is taken care of by SRAM DB8 4-piston hydraulic discs, delivering powerful, controlled stopping. Bontrager Line TLR wheels paired with 29x2.5” Bontrager Brevard Pro XR tyres offer grip, stability, and tubeless-ready reliability. A Bontrager Line dropper post rounds out the build, giving you on-the-fly saddle height adjustment for technical sections.
Weighing just over 21kg, the Trek Fuel EXe 8 Gen 2 strikes the perfect balance between lightweight trail agility and the added confidence of e-assist. Whether you’re tackling steep climbs, chasing flow on your local trails, or venturing into all-day backcountry adventures, this bike delivers a refined, natural e-MTB experience.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alpha NEXT Platinum, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel |
| Rear Shock | Fox Performance Float X, 2-position damper, 205 mm x 60 mm |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown *Brake Size: S, XL, L, M |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Bars | Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| Front Brake | SRAM DB 8 4-piston hydraulic disc |
| Rear Brake | SRAM DB 8 4-piston hydraulic disc |
| Rear Mech | SRAM Eagle 70, T-Type |
| Shifters | SRAM Eagle 70, 12-speed |
| Speed | 12 |
| Rims | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
| Front Hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle |
| Spokes | 14 g stainless steel, black |
| Front Tyre | Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" |
| Rear Tyre | Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" |
| Seat Post | Bontrager Line Dropper, MaxFlow, internal routing, 34.9 mm |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Chainset | SRAM EAGLE 70, SRAM T-Type, 32T, alloy |
| Chain | SRAM Eagle 70, T-Type, 12-speed |
| Cassette | SRAM Eagle XS-1270, T-Type,10-52, 12-speed |
| Weight | 21.08 kg |
| Battery Size (WH) | TQ 580Wh |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| User Interface | TQ LED display with Bluetooth & ANT+ connectivity |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
