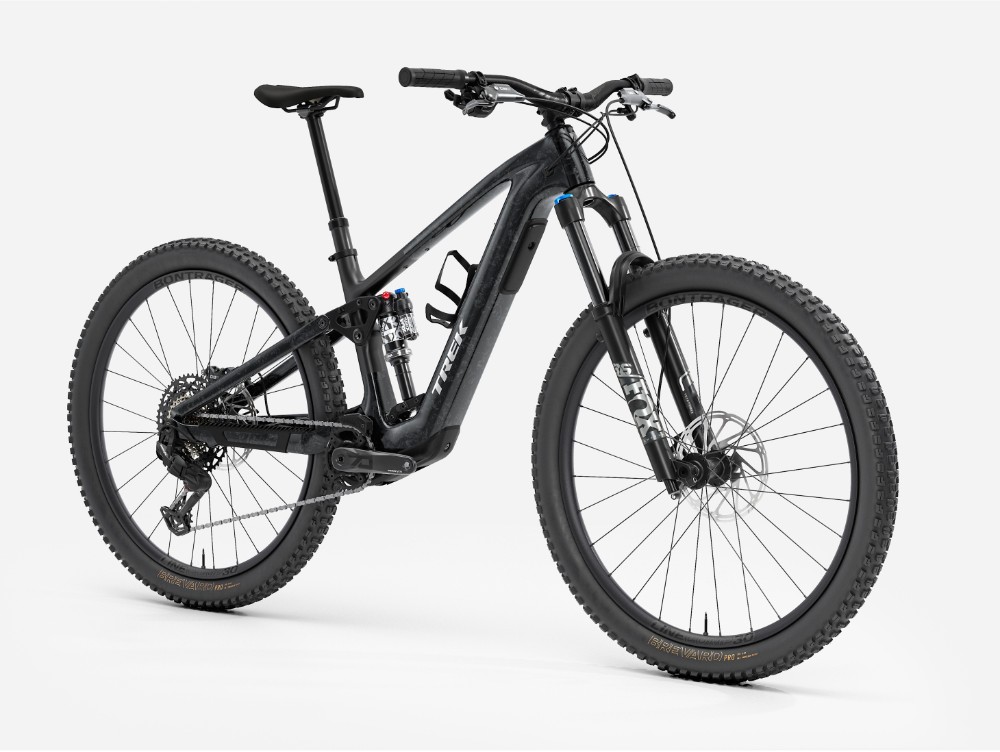

Trek Fuel+ EX 9.7 Gen 2 2026 - Electric Mountain Bike
The Trek Fuel+ EX 9.7 Gen 2 redefines what an e-MTB can be lightweight, playful, and almost silent on the trail. Built around Trek’s OCLV Mountain Carbon frame, it retains the geometry and agility of a trail bike while seamlessly integrating TQ’s innovative HPR60 motor system. With 60 Nm of torque, the motor provides a subtle boost that feels natural under pedal pressure, helping you ride further without overpowering the terrain.
Key Features:
- OCLV Mountain Carbon frame with adjustable geometry and 150 mm front / 140 mm rear travel
- Fox Rhythm 36 Float EVOL fork with GRIP damper and 150 mm of plush travel
- Fox Performance Float X rear shock with 2-position damper and 140 mm travel
- SRAM Eagle 70 T-Type 12-speed drivetrain for smooth, trail-tuned shifting
- SRAM DB8 4-piston hydraulic disc brakes for reliable stopping power
- 29” Bontrager Line TLR wheels with wide Brevard Pro XR tyres for grip and confidence
- Bontrager Line dropper post and internal downtube battery storage
- Available with 0% APR finance
Drive Information:
- Motor: TQ-HPR60 mid-drive motor with 60 Nm of torque and quiet, natural feel
- Battery: Integrated TQ 580 Wh battery for all-day trail sessions
- User Interface: TQ LED display with Bluetooth and ANT+ connectivity
Powering your ride is a 580 Wh battery housed inside the downtube, giving enough range for long climbs and big loops. The TQ LED display is cleanly integrated into the top tube and connects via Bluetooth and ANT+, making it easy to link with devices or apps for ride data and control.

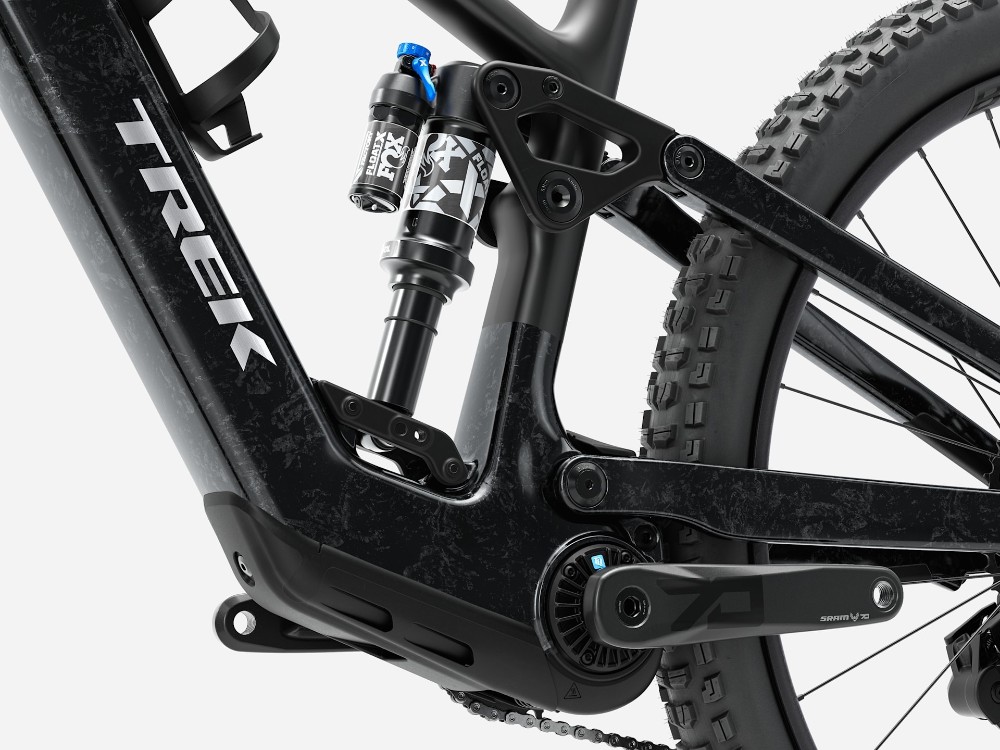

Suspension is dialled with a Fox Rhythm 36 fork up front, offering 150 mm of smooth travel with an EVOL air spring and GRIP damper. Out back, a Fox Performance Float X shock delivers 140 mm of supple yet supportive suspension, fine-tuned for aggressive trail riding.
You’ll appreciate the fully SRAM Eagle T-Type drivetrain, offering 12-speed shifting with durable, wide-range gearing and clean chainline performance. SRAM DB8 hydraulic brakes with 4-piston callipers offer strong, modulated stopping for when the trail gets steep or loose.
Rolling on 29” Bontrager Line TLR wheels and wide Brevard Pro XR tyres, the Fuel+ EX 9.7 Gen 2 provides excellent traction, while the Bontrager Line dropper post adds confidence when descending. With trail-worthy spec and subtle electric assist, this bike is all about riding further, and having more fun doing it.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel |
| Rear Shock | Fox Performance Float X, 2-position damper, 205 mm x 60 mm |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom, 1.5 crown |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Bars | Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| Front Brake | SRAM DB 8 4-piston hydraulic disc |
| Rear Brake | SRAM DB 8 4-piston hydraulic disc |
| Rear Mech | SRAM Eagle 70, T-Type |
| Shifters | SRAM Eagle 70, 12-speed |
| Speed | 12 |
| Rims | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
| Front Hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Spokes | 14 g stainless steel, black |
| Front Tyre | Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" |
| Rear Tyre | Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" |
| Saddle | Bontrager Verse P3, chromoly rails |
| Chainset | SRAM EAGLE 70 |
| Chain | SRAM Eagle 70, T-Type, 12-speed |
| Cassette | SRAM Eagle XS-1270, T-Type,10-52, 12-speed |
| Pedals | Resin Platform |
| Weight | 19.73 kg |
| Battery Size (WH) | TQ 580Wh |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| User Interface | TQ LED display with Bluetooth & ANT+ connectivity |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
