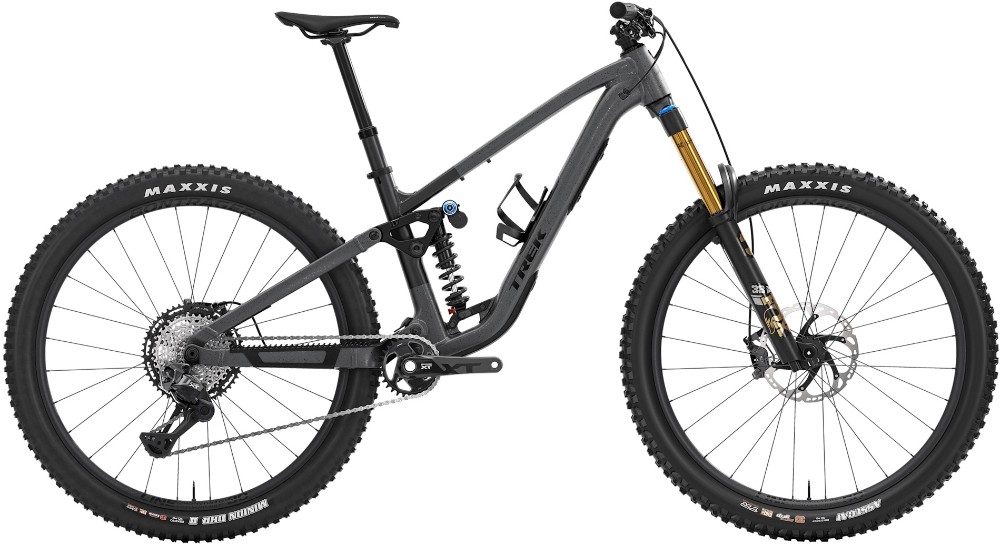

Trek Fuel LX 9 XT Di2 Gen 7 Mountain Bike 2026 - Enduro Full Suspension MTB
The Fuel LX 9 XT Di2 Gen 7 is designed to take on steeper lines and rougher terrain with total control. Its Alpha NEXT Platinum aluminium frame features Trek’s ABP suspension platform and adjustable geometry, giving you the flexibility to fine-tune the bike to your riding style. Internal storage and clean cable routing add practicality without sacrificing looks.
Key Features:
- Alpha NEXT Platinum aluminium frame, adjustable geometry, internal storage
- Fox Factory 38 Float GRIP X2 fork, 170mm travel
- Fox DHX2 coil rear shock, 160mm travel
- Shimano XT Di2 12-speed wireless electronic drivetrain
- Shimano XT M8200 4-piston hydraulic disc brakes
- Bontrager Line Comp 30 tubeless-ready wheels with Maxxis tyres
- Bontrager Line dropper post for easy on-the-fly adjustment
- Available with 0%APR finance
Up front, the Fox Factory 38 GRIP X2 fork with 170mm travel handles the biggest hits with precision, while the Fox DHX2 coil shock provides 160mm of supple, consistent rear travel. This combination keeps traction high and confidence even higher on demanding trails.
The bike’s shifting is powered by Shimano’s XT Di2 12-speed wireless drivetrain, offering crisp, accurate gear changes every time, with fully customisable settings via Shimano’s digital platform. Stopping power comes from Shimano XT M8200 4-piston brakes, delivering superb control and modulation when descending technical terrain.
Rolling on Bontrager Line Comp 30 tubeless-ready wheels with grippy Maxxis Assegai and Minion DHR II tyres, the Fuel LX 9 ensures traction and stability across loose, rocky and muddy conditions. A Bontrager Line dropper post and Verse Short saddle complete the build, giving comfort and control across long days in the saddle.
At 17.84kg, this alloy all-mountain rig balances durability with trail-ready agility. Whether you’re pushing into steep enduro descents or long, technical climbs, the Fuel LX 9 XT Di2 Gen 7 delivers confident handling, advanced suspension, and the latest wireless drivetrain technology.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alpha NEXT Platinum, internal storage, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| Fork | Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 170 mm travel |
| Rear Shock | Fox DHX2, 205 mm x 65 mm |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Bars | Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| Front Brake | Shimano XT M8200 4-piston hydraulic disc // Shimano XT M8200 4-piston hydraulic disc |
| Rear Brake | Shimano XT M8200 4-piston hydraulic disc // Shimano XT M8200 4-piston hydraulic disc |
| Rear Mech | Shimano XT M8250, long cage |
| Shifters | Shimano XT Di2 M8250, 12-speed |
| Speed | 12 |
| Rims | Bontrager Line Comp 30, Tubeless Ready |
| Front Hub | 6-bolt, Boost110, 15 mm thru-axle |
| Rear Hub | Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle |
| Front Tyre | Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5'' |
| Rear Tyre | Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5'' |
| Seat Post | Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Chainset | Shimano XT 8200, 30T, 55 mm chain-line |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Chain | Shimano XT M8100, 12-speed |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Weight | 17.84 kg |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
