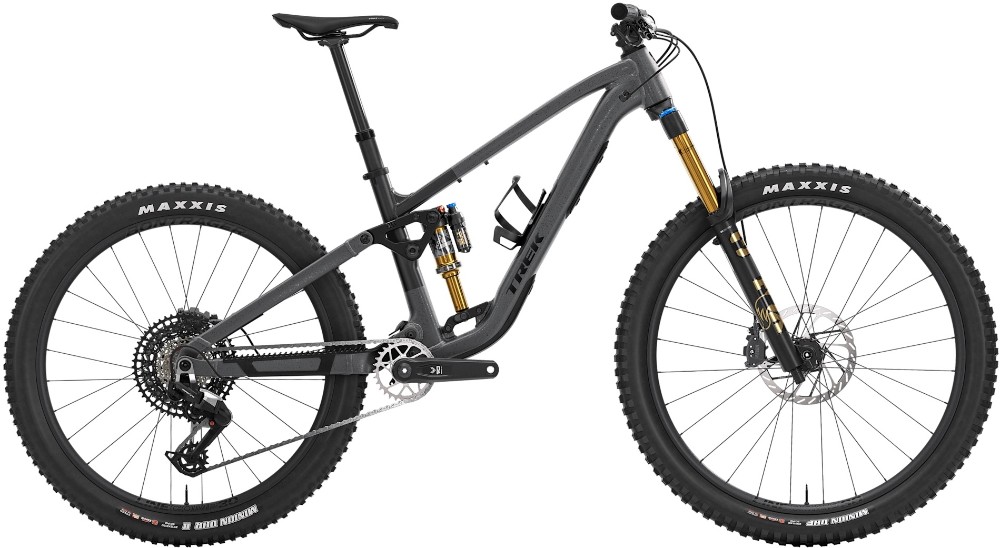

Trek Fuel MX 9 Eagle 90 Gen 7 Mountain Bike 2026 - Enduro Full Suspension MTB
The Fuel MX 9 Eagle 90 Gen 7 is built around Trek’s Alpha NEXT Platinum aluminium frame, engineered for strength, stiffness and lightweight efficiency. Features like guided internal cable routing, internal frame storage and adaptable geometry showcase Trek’s attention to detail, while Boost148 spacing keeps the rear end stiff for precise handling.
Key Features:
- Alpha NEXT Platinum aluminium frame with internal storage and trail-focused geometry
- Fox Factory 36 fork with 160mm travel for controlled and smooth front-end performance
- Fox Factory Float X rear shock with 150mm travel for composed and plush suspension feel
- SRAM Eagle 90 T-Type 12-speed drivetrain for crisp, precise and reliable gear changes
- SRAM Maven Bronze 4-piston hydraulic disc brakes with powerful stopping control
- MX wheels: 29” front / 27.5” rear with Maxxis Assegai & Minion DHR II tubeless tyres
- Bontrager Line dropper post for seamless saddle height adjustment on technical terrain
- Available with 0% APR finance
Suspension comes courtesy of Fox Factory components, with a 160mm Fox 36 fork up front paired to a Float X shock at the rear. Together they deliver plush, tunable suspension that smooths out the roughest terrain while keeping you composed on technical climbs. The MX wheel setup – a 29er up front and 27.5” at the rear – gives you rollover confidence with added agility.
Shifting is handled by SRAM’s Eagle 90 T-Type 12-speed drivetrain, designed to stay smooth and accurate even under heavy pedalling loads. Paired with the wide 10-52T cassette, it offers plenty of range for steep climbs and fast descents. Braking comes from SRAM Maven Bronze 4-piston brakes, delivering reliable stopping power and control in all conditions.
Rolling on Bontrager Line Comp 30 wheels with Maxxis Assegai and Minion DHR II tyres, this bike is ready for aggressive trail riding straight out of the box. A Bontrager Line dropper post completes the build, making it easy to switch your riding position as the trail demands.
The Trek Fuel MX 9 Eagle 90 Gen 7 is a do-it-all trail bike that combines versatility with performance. Whether you’re flowing through singletrack, tackling a technical climb, or pushing the limits on a descent, it’s designed to keep you in control and smiling all ride long.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alpha NEXT Platinum, internal storage, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 160 mm travel |
| Rear Shock | Fox Factory Float X, 205 mm x 60 mm |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Bars | Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| Front Brake | SRAM Maven Bronze 4-piston hydraulic disc // SRAM Maven ive Bronze 4-piston hydraulic disc |
| Rear Brake | SRAM Maven Bronze 4-piston hydraulic disc // SRAM Maven ive Bronze 4-piston hydraulic disc |
| Rear Mech | SRAM Eagle 90, T-Type |
| Shifters | SRAM Eagle 90, 12-speed |
| Speed | 12 |
| Rims | Bontrager Line Comp 30, Tubeless Ready |
| Front Hub | 6-bolt, Boost110, 15 mm thru-axle |
| Rear Hub | Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle |
| Front Tyre | Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' |
| Rear Tyre | Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' |
| Seat Post | Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Chainset | SRAM Eagle 90, DUB, 30T steel, T-Type, 55 mm chainline |
| Bottom Bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12-speed |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
