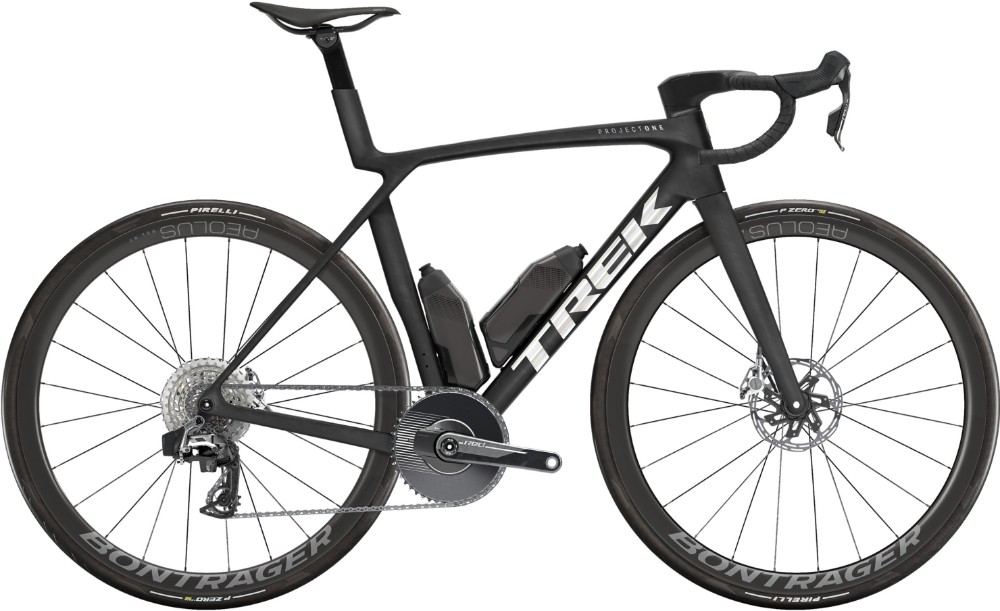

Trek Madone SLR 9 AXS 1x Gen 8 2026 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle |
| Front Brake | SRAM Red AXS E1 hydraulic disc, flat mount |
| Rear Brake | SRAM Red AXS E1 hydraulic disc, flat mount |
| Brake Lever | SRAM RED AXS E1 |
| Rear Mech | SRAM RED AXS E1, 36T max cog |
| Shifters | SRAM RED AXS E1 |
| Speed | 12 |
| Rims | Bontrager Aeolus RSL 37 |
| Front Hub | 100 x 12 mm thru axle |
| Rear Hub | 142 x 12 mm thru axle |
| Front Tyre | Pirelli P Zero Race RS, 120 tpi, 700x28 mm |
| Rear Tyre | Pirelli P Zero Race RS, 120 tpi, 700x28 mm |
| Seat Post | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop |
| Saddle | Aeolus RSL, carbon rails, 145 mm width |
| Chainset | SRAM RED E1, power meter, 48T, DUB |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Chain | SRAM RED E1, 12-speed |
| Cassette | SRAM RED XG-1290 E1, 10-36, 12-speed |
| Pedals | Resin Platform |
| Weight | 6.40 kg |
Trek Madone Gen 8 Size Chart
| Size | Height cm | Height Feet / Inches | Inseam cm | Inseam Inches |
|---|---|---|---|---|
| XS (47cm) | 143 - 158 cm | 4'8" - 5'2" | 67 - 74 cm | 26" - 29" |
| S (50cm) | 158 - 162 cm | 5'2" - 5'4" | 74 - 76 cm | 29" - 30" |
| M (52-54cm) | 162 - 173 cm | 5'4" - 5'8" | 76 - 81 cm | 30" - 32" |
| ML (56cm) | 173 - 179 cm | 5'8" - 5'10" | 81 - 84 cm | 32" - 33" |
| L (58cm) | 179 - 188 cm | 5'10" - 6'2" | 84 - 88 cm | 33" - 35" |
| XL (60-62cm) | 188 - 213 cm | 6'2" - 7'0" | 88 - 100 cm | 35" - 39" |
What size frame do I need if I am between sizes? - read here
Trek Madone Gen 8 Geometry Chart
| Size | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Stack | 507 | 530 | 546 | 562 | 582 | 610 |
| Reach | 370 | 378 | 384 | 389 | 394 | 402 |
| Head Tube Length | 100 | 121 | 136 | 150 | 172 | 201 |
| Head Tube Angle | 71.6° | 72.2° | 72.9° | 73.5° | 73.8° | 73.9° |
| Bottom Bracket Drop | 72 | 72 | 70 | 70 | 68 | 68 |
| Trail | 61 | 62 | 58 | 59 | 57 | 57 |
| Fork Rake/Offset | 50 | 45 | 45 | 40 | 40 | 40 |
| Chainstay Length | 410 | 410 | 410 | 410 | 411 | 412 |
| Wheelbase | 971 | 976 | 981 | 980 | 990 | 1007 |
| Top Tube Length (horizontal) | 517 | 532 | 545 | 557 | 568 | 584 |
| Standover Height | 704 | 734 | 762 | 790 | 820 | 863 |
| Seat Tube Length | 404 | 440 | 476 | 512 | 548 | 609 |
| Seat Tube Angle | 73.8° | 73.8° | 73.6° | 73.4° | 73.4° | 73.4° |
| Saddle rail height min (w/short mast) | 549 | 585 | 621 | 657 | 693 | 754 |
| Saddle rail height max (w/short mast) | 612 | 648 | 684 | 720 | 756 | 817 |
| Saddle rail height min (w/tall mast) | 592 | 628 | 664 | 700 | 736 | 797 |
| Saddle rail height max (w/tall mast) | 654 | 690 | 726 | 762 | 798 | 859 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
