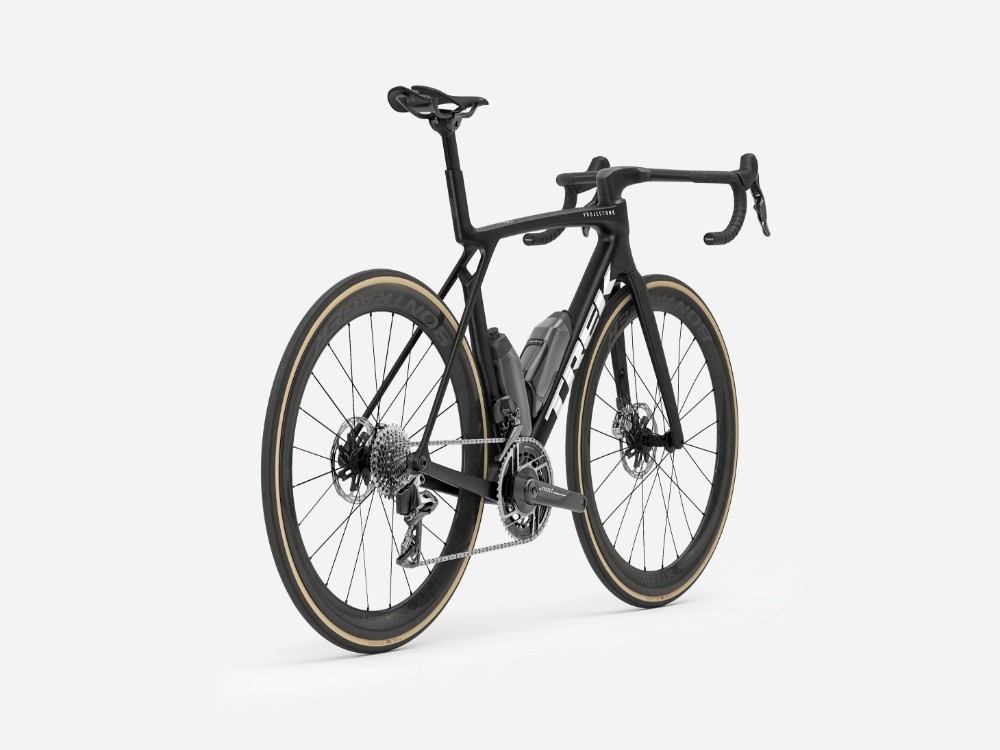

Trek Madone SLR 9 AXS Gen 8 2026 - Road Bike
The Trek Madone SLR 9 AXS Gen 8 is the fastest road bike Trek has ever made built with input from elite pros and refined across eight generations to deliver class-leading aerodynamics, stiffness and comfort. At the core is Trek’s 900 Series OCLV Carbon, shaped using Full System Foil tube profiles to minimise drag across every tube junction, improving airflow whether you’re sprinting or powering over climbs.
Key Features:
- 900 Series OCLV Carbon frame with Full System Foil aero shaping and IsoFlow seat tube
- Madone Gen 8 full carbon fork with tapered steerer and internal routing
- SRAM RED AXS E1 2x12 wireless drivetrain with integrated power meter
- SRAM RED AXS E1 hydraulic disc brakes with Paceline X 160 mm rotors
- Bontrager Aeolus RSL 51 carbon wheels with RSL RD 700x28 mm tyres
- Trek Aero RSL one-piece carbon bar/stem and RSL Aero bottles & cages
- Available with 0% APR finance

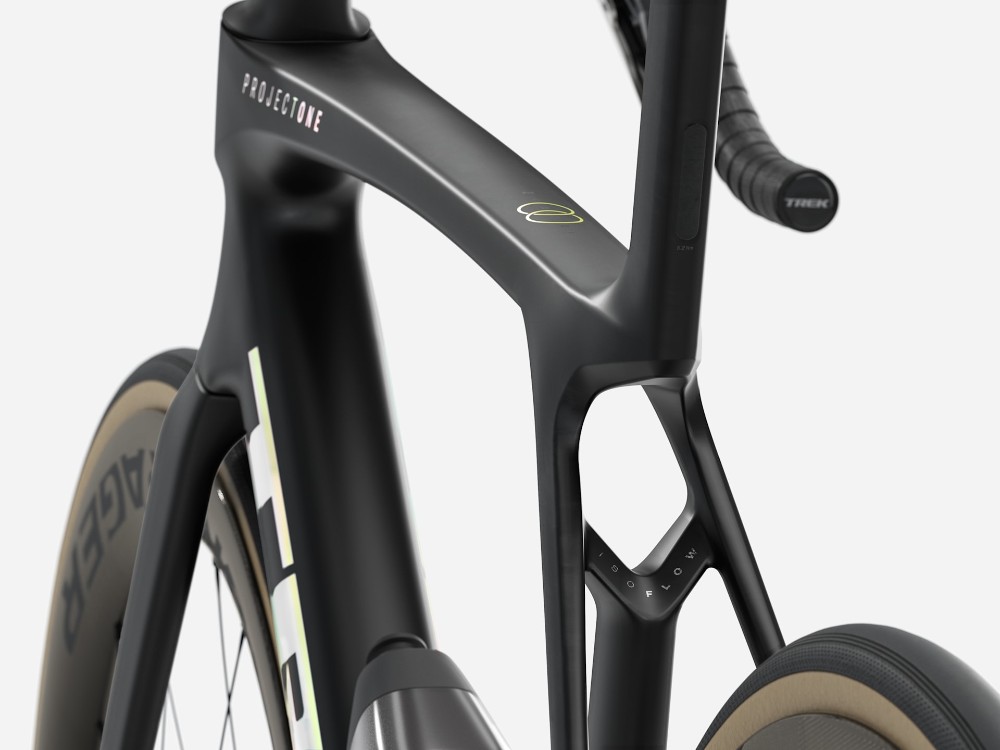

The frame features the latest IsoFlow seat tube, which flexes to absorb road vibrations while also reducing weight and boosting aero performance. This Gen 8 version has been redesigned for 80% more vertical compliance, offering a smoother, more comfortable ride without compromising stiffness or efficiency.
Paired with SRAM’s flagship RED AXS E1 groupset, the bike delivers flawless, wireless shifting with fully customisable gear setup and haptic feedback from the shifters. The integrated power meter on the chainset lets you train and race with precision, while the 10–33 cassette ensures a wide range for punchy climbs and big-ring descents.
Braking is equally pro-level with SRAM RED AXS hydraulic disc brakes and Paceline X rotors offering strong, fade-free stopping power. Rolling performance comes from Bontrager Aeolus RSL 51 carbon wheels, matched to Bontrager RSL RD 28 mm tubeless tyres for race-ready speed and grip.
A fully integrated Trek Aero RSL carbon cockpit and Madone aero carbon seatpost round out a package that’s designed to maximise every performance edge. Even the included RSL Aero bottles and cages are shaped to reduce drag and match the frame lines seamlessly.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle |
| Stem | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit |
| Bars | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit |
| Front Brake | SRAM RED AXS E1, SRAM Paceline X, rounded, CentreLock, 160 mm |
| Rear Brake | SRAM RED AXS E1, SRAM Paceline X, rounded, CentreLock, 160 mm |
| Brake Lever | SRAM RED AXS E1 |
| Front Mech | SRAM RED AXS E1, braze-on |
| Rear Mech | SRAM RED AXS E1, 36T max cog |
| Shifters | SRAM RED AXS E1 |
| Speed | 24 |
| Rims | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth |
| Front Hub | 100x12 mm thru axle |
| Rear Hub | SRAM XD-R driver, 142x12 mm thru axle |
| Front Tyre | Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm |
| Rear Tyre | Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm |
| Seat Post | Madone aero carbon seat post, 0 mm offset, short length |
| Saddle | Aeolus RSL, carbon rails, 145 mm width |
| Chainset | SRAM RED AXS E1, power meter, 48/35, DUB |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Chain | SRAM RED E1, 12-speed |
| Cassette | SRAM RED XG-1290 E1, 10-33, 12-speed |
| Pedals | Resin Platform |
Trek Madone Gen 8 Size Chart
| Size | Height cm | Height Feet / Inches | Inseam cm | Inseam Inches |
|---|---|---|---|---|
| XS (47cm) | 143 - 158 cm | 4'8" - 5'2" | 67 - 74 cm | 26" - 29" |
| S (50cm) | 158 - 162 cm | 5'2" - 5'4" | 74 - 76 cm | 29" - 30" |
| M (52-54cm) | 162 - 173 cm | 5'4" - 5'8" | 76 - 81 cm | 30" - 32" |
| ML (56cm) | 173 - 179 cm | 5'8" - 5'10" | 81 - 84 cm | 32" - 33" |
| L (58cm) | 179 - 188 cm | 5'10" - 6'2" | 84 - 88 cm | 33" - 35" |
| XL (60-62cm) | 188 - 213 cm | 6'2" - 7'0" | 88 - 100 cm | 35" - 39" |
What size frame do I need if I am between sizes? - read here
Trek Madone Gen 8 Geometry Chart
| Size | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Stack | 507 | 530 | 546 | 562 | 582 | 610 |
| Reach | 370 | 378 | 384 | 389 | 394 | 402 |
| Head Tube Length | 100 | 121 | 136 | 150 | 172 | 201 |
| Head Tube Angle | 71.6° | 72.2° | 72.9° | 73.5° | 73.8° | 73.9° |
| Bottom Bracket Drop | 72 | 72 | 70 | 70 | 68 | 68 |
| Trail | 61 | 62 | 58 | 59 | 57 | 57 |
| Fork Rake/Offset | 50 | 45 | 45 | 40 | 40 | 40 |
| Chainstay Length | 410 | 410 | 410 | 410 | 411 | 412 |
| Wheelbase | 971 | 976 | 981 | 980 | 990 | 1007 |
| Top Tube Length (horizontal) | 517 | 532 | 545 | 557 | 568 | 584 |
| Standover Height | 704 | 734 | 762 | 790 | 820 | 863 |
| Seat Tube Length | 404 | 440 | 476 | 512 | 548 | 609 |
| Seat Tube Angle | 73.8° | 73.8° | 73.6° | 73.4° | 73.4° | 73.4° |
| Saddle rail height min (w/short mast) | 549 | 585 | 621 | 657 | 693 | 754 |
| Saddle rail height max (w/short mast) | 612 | 648 | 684 | 720 | 756 | 817 |
| Saddle rail height min (w/tall mast) | 592 | 628 | 664 | 700 | 736 | 797 |
| Saddle rail height max (w/tall mast) | 654 | 690 | 726 | 762 | 798 | 859 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
