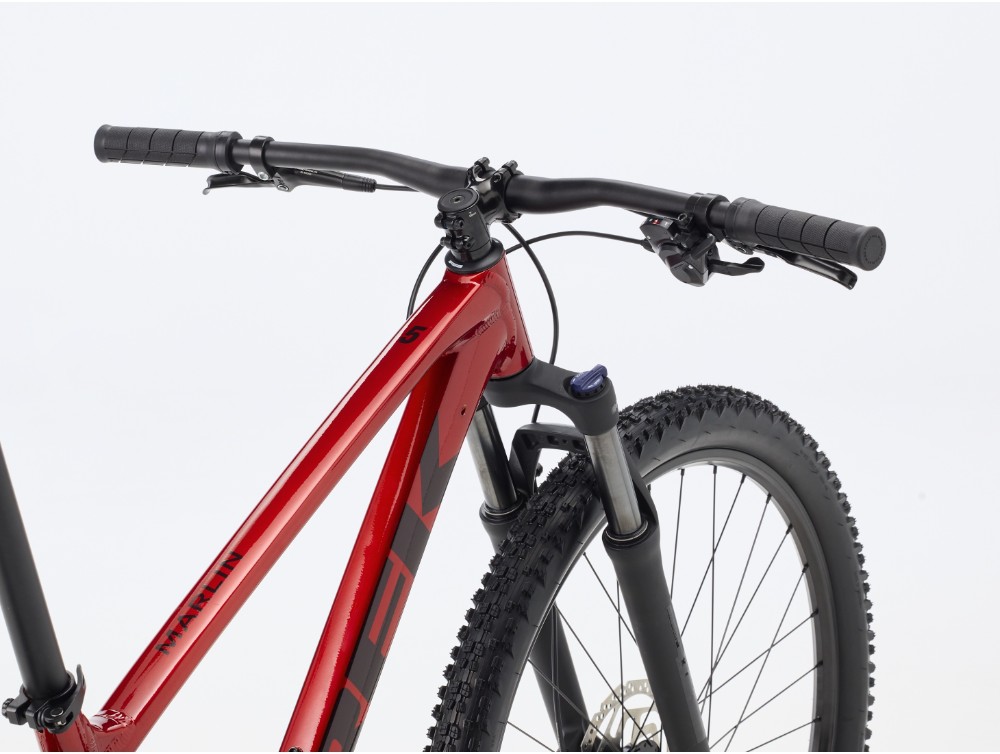

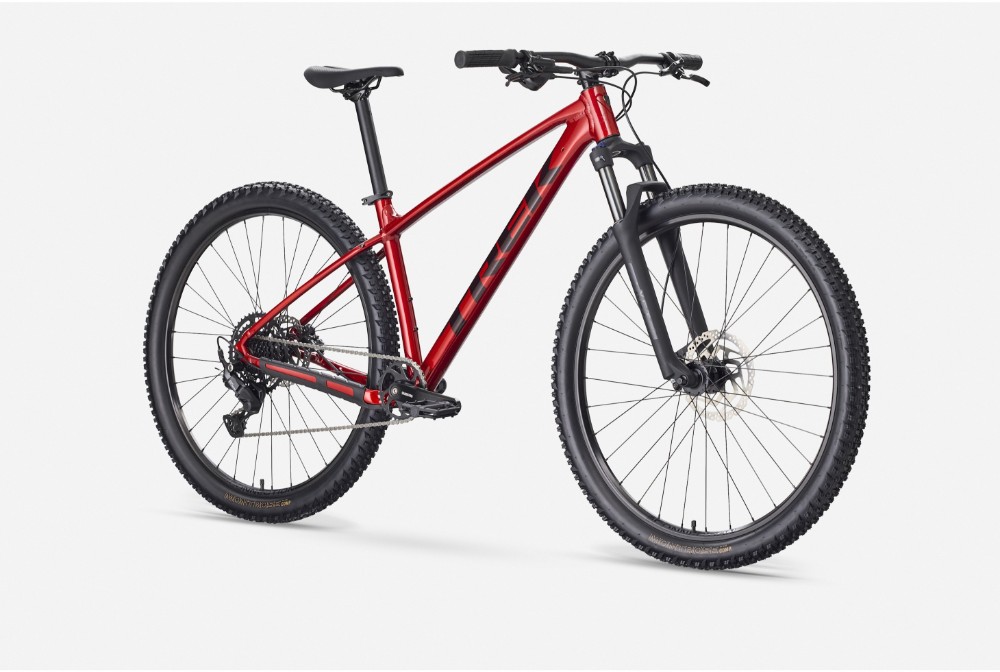

Trek Marlin 5 Gen 3 Mountain Bike 2026 - Hardtail MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
| Fork | SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100 mm QR |
| Headset | Semi-Integrated, 1-1/8" |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree |
| Bars | Bontrager alloy, 31.8 mm, 5 mm rise |
| Front Brake | Shimano MT200 Hydraulic Disc |
| Rear Brake | Shimano MT200 Hydraulic Disc |
| Brake Lever | SHIMANO MT200 |
| Rear Mech | Shimano CUES U4000 |
| Shifters | Shimano U4000, 9-speed |
| Speed | 9 |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Front Hub | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Rear Hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Front Tyre | Bontrager Montrose comp, wire bead, 30 tpi |
| Rear Tyre | Bontrager Montrose comp, wire bead, 30 tpi |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Chainset | Shimano CUES U4001, 32T, 52mm chain line |
| Bottom Bracket | Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
| Chain | Shimano LG500 |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
Trek Marlin Gen 3 Sizing Guide
| Size | Height (cm) | Height (Feet / Inches) | Inseam (cm) | Inseam (Inches) |
|---|---|---|---|---|
| XS | 145 - 155 cm | 4'9" - 5'1" | 69 - 73 cm | 27" - 29" |
| S | 155 - 165 cm | 5'1" - 5'5" | 74 - 78 cm | 29" - 31" |
| M | 165 - 176 cm | 5'5" - 5'9" | 79 - 83 cm | 31" - 33" |
| ML | 173 - 180 cm | 5'8" - 5'11" | 81 - 86 cm | 32" - 34" |
| L | 177 - 188 cm | 5'10" - 6'2" | 84 - 89 cm | 33" - 35" |
| XL | 188 - 195 cm | 6'2" - 6'5" | 89 - 91 cm | 35" - 36" |
| XXL | 195 - 203 cm | 6'5" - 6'8" | 91 - 97 cm | 36" - 38" |
What size frame do I need if I am between sizes? - read here
Trek Marlin Gen 3 Geometry Chart
| Size | XS | S | M | ML | L | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack | 563 | 572 | 601 | 614 | 618 | 637 | 651 |
| Reach | 390 | 415 | 440 | 455 | 470 | 495 | 520 |
| Head Tube Length | 90 | 100 | 105 | 110 | 115 | 135 | 150 |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| Bottom Bracket Height | 313 | 313 | 308 | 308 | 308 | 308 | 308 |
| Bottom Bracket Drop | 45 | 45 | 60 | 60 | 60 | 60 | 60 |
| Trail | 110 | 110 | 110 | 110 | 110 | 110 | 110 |
| Fork Rake/Offset | 42 | 42 | 46 | 46 | 46 | 46 | 46 |
| Chainstay Length | 433 | 433 | 438 | 438 | 438 | 438 | 438 |
| Wheelbase | 1092 | 1121 | 1153 | 1180 | 1197 | 1230 | 1261 |
| Top Tube Length (horizontal) | 551 | 579 | 615 | 631 | 647 | 678 | 707 |
| Standover Height | 658 | 692 | 747 | 759 | 771 | 791 | 816 |
| Seat Tube Length | 340 | 370 | 420 | 435 | 450 | 500 | 540 |
| Seat Tube Angle | 73.8° | 73.8° | 73.4° | 73.4° | 73.4° | 73.4° | 73.4° |
| Effective Seat Tube Angle | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
